AV-529 COMM ANTENNA
Nuovo prodotto
AV-529 COMM ANTENNA
Disponibile in 3/5gg. salvo il venduto
Questo prodotto non è più disponibile
Dettagli

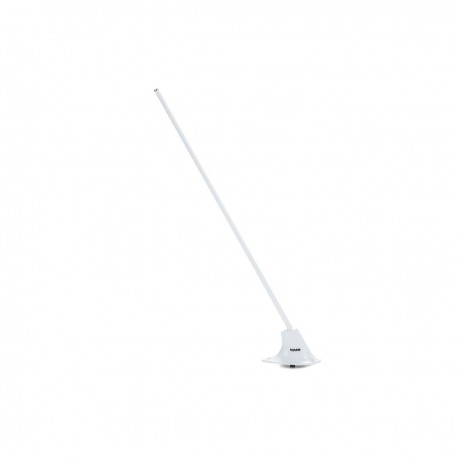

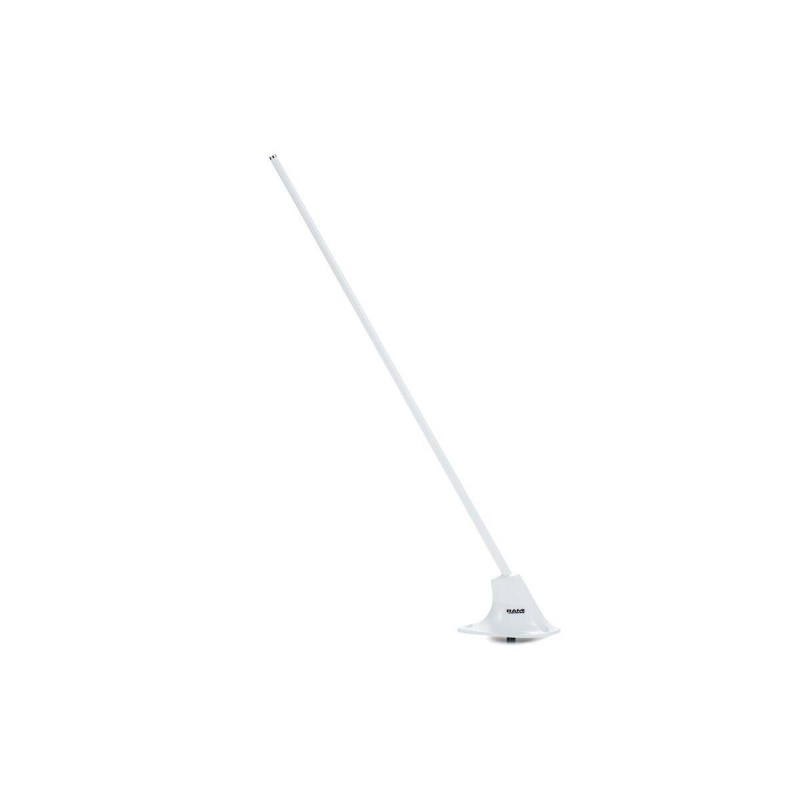

The AV-529 is designed for broadband communications (118-136 MHz). It has a die-cast aluminum base and a uniquely designed radiator encapsulated in a fiberglass whip. The antenna is supplied with a weather-sealing gasket and mounting hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes of 50,000 ft. It has a drag force of 3.43 lb @ 250 mph.
| Product Specifications | |
| Application: | Airborne Communications |
| Frequency: | 118 to 136 MHz |
| Impedance: | 50 Ohms Nominal |
| VSWR: | 1.8 to 1 Maximum |
| Polarization: | Vertical |
| Pattern: | Omni-Directional |
| Connector: | Type "BNC" Female |
| Max Weight: | 8 oz |
| Max Height: | 20-1/4" |
| RF Power Capacity: | 25 Watt |
Technical Sheet: |
| Installation : |
 AV-529 - Installation Instruction |
| Drill : |
| AV-529 - Drill Template |
| Data Sheet: |
| AV-529 - Product Data Sheet |
RAMI general aviation antennas are designed and
manufactured to stringent quality standards.
Our antennas and associated products are in
compliance with the FAA Technical Standard Order
(TSO) specifications and testing.
